uv sterilization lamp

110W UV sterilizer with stainless steel bracket

Product Name:110W UV sterilizer with stainless steel bracket Model No.:UV-55W/2P-2B Product Description:110W double open ends stainless steel Ultraviolet (UV) water sterilizer with stainless steel bracket

110W Double Open Ends Stainless Steel Ultraviolet (UV) Water Sterilizer With Stainless Steel Bracket

The number of the UV lamps: 2 pcs of 55W UV lamps.

Housing material: stainless steel 304SS or 316SS.

All UV lamp power: 110W.

Philips brand UV lamp is optional.

Voltage: 110V/60Hz or 240V/50Hz.

Inlet/outlet port: 1"NPT male thread or flange.

Water treatment capacity: 24GPM(5.5M³/Hr).

Max working pressure: 10bar(145psi).

Test water pressure: 15bar(218psi).

UV lamp failure warning system - voice and LED alarm are optional.

UV lamp life: > 8000Hrs.

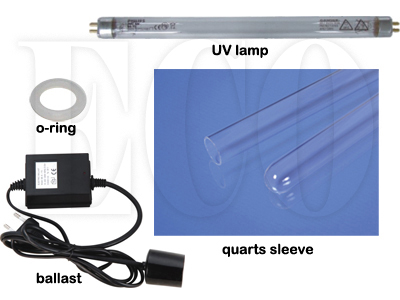

Parts of the UV sterilizer include - ballast, UV lamp, quartz sleeve, JACO/quick connectors, O-ring seal etc:



Plug style of UV sterilizer is optional:



Packing: 104 X 23 X 41cm/1pc, G.W: 8kgs.
